FPGApple revisited

In a couple of years since I did the original FPGApple ,  other people created FPGA based replicas of my first love
 among computers - the Apple 2. Among them  Stephen Edwards of the Columbia University who claims to have gotten some inspiration from my project. His version is open source (in VHDL) and is far better structured than mine. Not surprising - the intent was to use it as a teaching aid.
http://www1.cs.columbia.edu/~sedwards/apple2fpga/
    At the same time I was asked to look into porting FPGApple to a different platform - C-One.This is a rather interesting platform designed specifically to implement re-configurable retro-computers. The heart is an Altera FPGA that is configured on-the-fly by a second FPGA from a bitstream residing on a CDROM or a CF card. The user can select which configuration to use at boot time.
 Payton Byrd loaned me his C-One to do the port. Unfortunately what first seemed to be a relatively simple "port" has to be an almost complete re-write. The architecture of the C-One board is such that some options are limited. For example the pixel clock can be either 25 or 33 MHz. This is fine for VGA compatible timing, but my FPGApple doesn't map to it.

The real Apple 2 has a 14.28 MHz master clock used as the pixel clock in the highest resolution and everything else is derived from it. The CPU clock divides it by 14, etc.
So my FPGApple used twice that (about 28 MHz) as a master clock and generated a nice 60 Hz vertical, more or less VGA compatible video. One clock out of 28 used as a 6502 clock, so everything ran at the native speed. Good for games, sound, etc.Now if we have to use 33 MHz clock and a similar clocking scheme, the CPU will run faster by some 15%. If the 33 MHz is divided by 33 instead, it would be impossible to use the same number of CPU cycles per video frame. In addition the synchronization between the video and the CPU - one of the most ingenious features of the Apple 2 will also be broken.

Either way a serious rewrite is needed. Unfortunately the C-One board doesn't have the JTAG pins of the FPGA connected. So not only does a reconfiguration require writing the bitstream to the CF card which is way slower than a normal JTAG upload, but the wonderful Altera tools like the memory editor and most importantly the SignalTap debugger can't be used.However since I use FPGAs for more than retro-computing toys, I have all kinds of neat hardware.
Including the Altera/Terrasic DE1 board.

Apart from being a great development tool, it is a really nice retro-computing platform.It has SRAM, SDRAM, FLASH memories, 12 bit VGA and an MMC/SD card connector.It has a different (much newer and more powerful) FPGA chip than the C-One board but I decided that it would be better to debug the design on this platform and then re-synthesize it for the C-One.So this DE1 version started as a way to help with the C-One development, but became something probably more useful than the intended result.I will still try to make at least some kind of an Apple 2 compatible for the C-One but lack of documentation, no debugging facilities and the fact that I don't even own a C-One board mean that it will not likely be a very complete computer.
On the other hand the DE1 version is already usefully. The most interesting feature is the use of the MMC/SD card for holding floppy disk images. No extra hardware is needed - just the DE1 board itself plus a PS/2 keyboard and an MMC/SD card. I'm using a second soft CPU (inside the same Cyclone 2 FPGA) to parse the MMC card with a FAT16 file system.

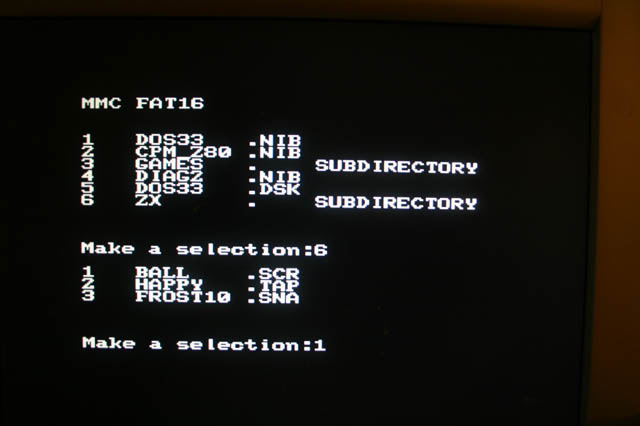

fat16
The .NIB images can be written to the card on any PC (or MAC or a Linux box).

The second CPU happens to be a Z80. It will later be also used to run CP/M from Apple .NIB disk images intended for Z80 card equipped Apples. Only a single track is read from the MMC card to a memory buffer at a time. No write capability so far.
Of course the MMC card with the FAT16 and NIB images is compatible with my PseudoDisk.
.DSK files are not yet supported - this would require translating them on-the-fly into .NIB images. No big deal, but somebody needs to write the code... I really hope somebody other than myself does, as I strongly prefer Verilog to 6502 (or Z80) machine code. The project is open source.

New soft ZX Spectrum.

The ZX directory on my MMC card is for running on my DE1 version of a Sinclair Spectrum.I am probably not going to develop it any further but the source is available here.It is a full Spectrum 128 including the sound and capable of loading "snapshot" files available on the web.

What's available.

The new FPGApple DE1 is work in progress. It is a bit cleaner than the first one. Everything is pure Verilog this time, including a different version of the 6502 CPU.
"BC6502" (C) 2002 Bird Computer.
Video is very basic - just a crude translation to RGB. No attempt to emulate the NTSC screen.Currently the Z80 is only used for FAT processing. No joystick interface yet. I think this may be a nice toy for somebody who wants to go one step beyond software emulators. A better "feel" of a "real" computer, but uses a VGA screen. It looks best on an analog CRT. LCD needs to resample the video TWICE: first to convert from the Apple's 280 pixels per line to almost 640 pixels and then again from 640 to the native 1024 (or whatever) horizontal resolution of the LCD panel. Still on reasonable quality LCD displays it doesn't look too bad.

Some mandatory screenshots :)

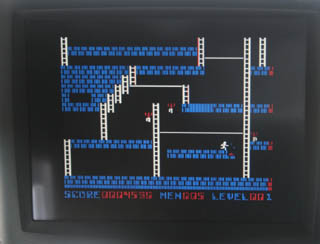

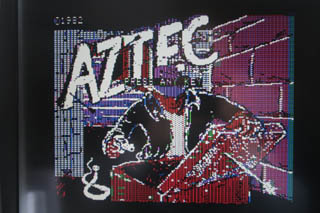

Lode Runner            Aztec


Left to do:
  1. Implement 80 column Apple 2e video mode and "double high res" graphics.
  2. Map the Z80 to act like the SoftCard.
  3. Enable DSK image files processing.
  4. Add SuperSerial card emulation.
  5. Add read/write ProDOS mode to MMC. This is a software task.
Then with any luck I'll try to make the C-One port that started this project...

Should you get yourself a DE1 board?

Maybe. It is probably an almost perfect platform to run retro-computer replicas. A few are available in addition to my Apple and Sinclair Spectrum. Including a full blown Amiga ("minimig"), soft 68000 CPU and everything!
Another example is an Intel 8080 based  computer  by  Viacheslav Slavinsky. Open source at
http://code.google.com/p/vector06cc

The FPGA is pretty powerfull: my 2 CPUs and all the glue only take about 20% of the available logic. If you want to learn programmable logic, this board is  likely one of the best. If you just want to play with old computers it may still be a good idea to buy DE1: only $150 and no extra hardware needed. Cheaper than C-One and much more powerful and flexible.
Of course it doesn't have a CDROM interface but one can be added if you want it badly enough.
