The old meets the new

The modern FPGAs are so cool! Apart from being  a platform to re-implement old computers they can also be used to enhance them.

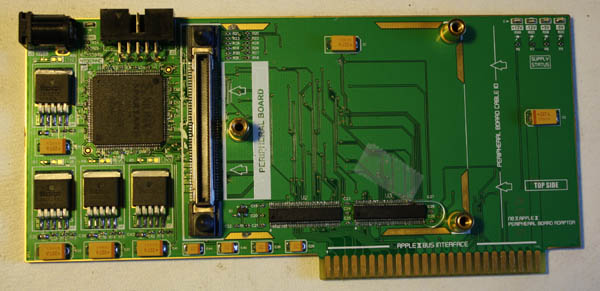

Here is a prototype of an "mini-everything" card.  "Everything" because the FPGAs are so flexible and. Mini because this
particular FPGA has limited resources. It was chosen as the only one in the (Spartan AN) family  with a non-BGA case
that can almost be hand soldered. "Almost" because I can't do it myself but others can and one did :)
The 4 voltage regulators are an overkill for this particular setup as only 3.3V and 1.2V are needed by the FPGA itself but there are present to cover possible needs of the plug-in peripheral boards. The FPGA and Apple bus voltage converters are the only other active elements. Oh, and the FPGA is $9 quantity 1 at DigiKey!

50 AN card

With no additional hardware except for a JTAG interface (that you already have if you do FPGA work) this board can act as an Apple 2 bus logic analyser. Just use the stock tools from Altium or Xilinx.

The "peripheral board" connector accepts an Altium Nanoboard peripheral.

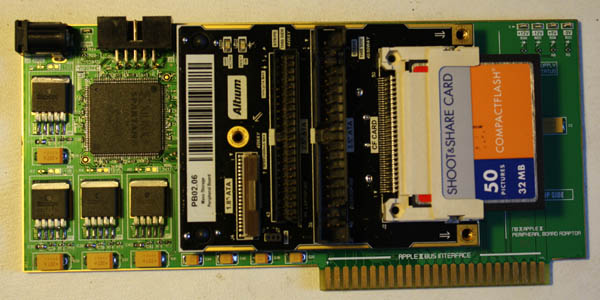

As a proof of concept here is one with  IDE/CF connectors plugged in.

And an extremely simple configuration using a tiny fraction of the tiny FPGA makes this device a clone of the CFFA card. It even works ;)

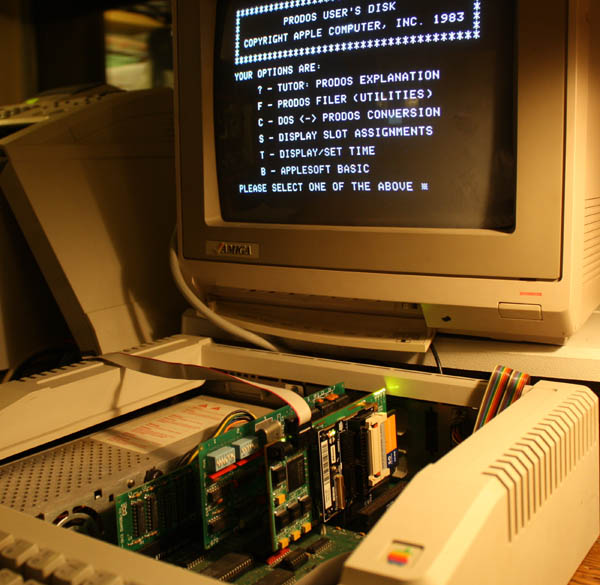

CF in action

From merely ridiculus to patently insane.

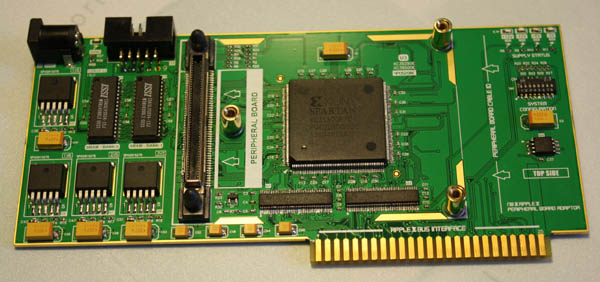

This card has a huge 500,000 gate FPGA. Big enough to implement 3 or 4 complete Apple 2 computers, CPU included.
500e card

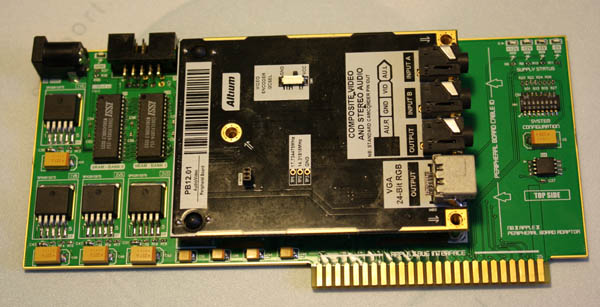

Here a fancy Altium video i/o daughterboard is mounted. Just because I have it. For VGA compatible output from Apple the 2 resistors per color "DAC" produces exactly the same result.


This sandwich acts as a nice video board for an Apple 2 computer. I first wanted to publish screen shots here, but they are identical to what my FPGApple produces. No big surprize: portions of the same Verilog used.

The board we hope to offer to the public in the near future will have an integrated resistor DAC.
